| 원래 장소: | 독일 |
| 브랜드 이름: | Rexroth |
| 모델 번호: | R900965477 DBW10A1-5X/315-6EG24N9K4 DBW10A1-52/315-6EG24N9K4 |
| 최소 주문 수량: | 1 |
|---|---|
| 가격: | On request |
| 포장 세부 사항: | 규격 용지 박스 |
| 배달 시간: | 7-10days |
| 지불 조건: | 전신환, 웨스턴 유니온 |
| 공급 능력: | 한달에 100PCS |
| 아니오 타이핑하세요.: | R900965477 | 모델 부정.: | DBW10A1-5X/315-6EG24N9K4 DBW10A1-52/315-6EG24N9K4 |
|---|---|---|---|
| 강조하다: | DBW10A1-5X 압력 릴리프 밸브,솔레노이드 조종된 압력 릴리프 밸브,렉스로스 수력 압력 방출 밸브 |
||

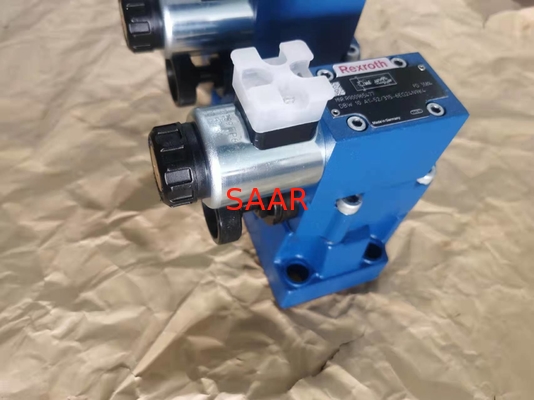

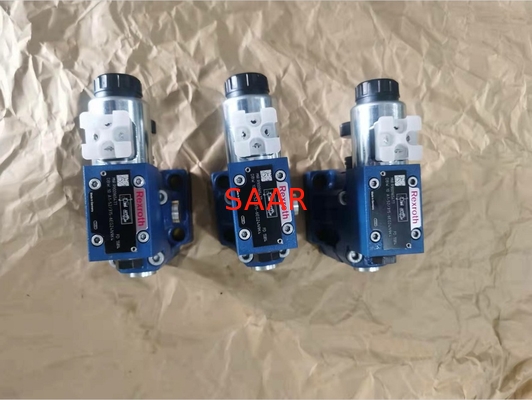

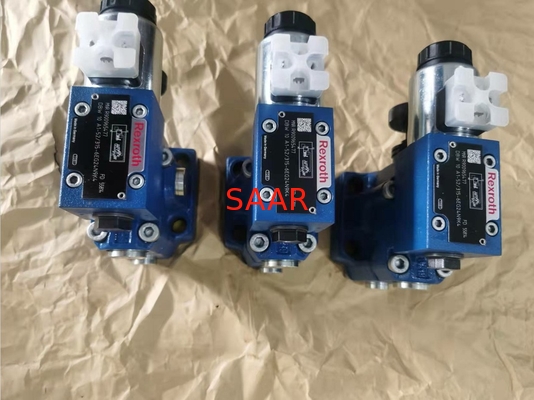

렉스로스 압력 릴리프 밸브, 파일럿 제어식 DBW 시리즈
칫수 10... 32
성분 시리즈 5X
최대 작동 압력 350 바
최대 흐름 650 Ｌ / 분
특징
서브플레이트 장착을 위해
ISO 6264-06-09 (NG10), ISO 6264-08-13 (NG25)와 ISO 6264-10-17 (NG32)에 따른 포팅 패턴
나사 결합을 위해
스크류-인 카트리지 밸브 (카트리지)로서
4번 조정은 마음대로 압력 조정을 위해 타이핑합니다
오우 회전식 손잡이
육각형과 보호캡과 오우 소매
스케일과 오우 로크 가능 회전식 손잡이
스케일과 오우 회전식 손잡이
5 정력 압력
빌트 온 지향성인 스풀 밸브 또는 지향성인 포핏 밸브 를 경유하는 솔레노이드로 작동되는 언로딩
고전력 솔레노이드
선택적인 스위칭 충격 감폭
타입 코드 :
| R901041143 | DBW10A1-5X/100-6EG24N9DL |
| R901075331 | DBW10A1-5X/100-6EG24N9K4 |
| R901207505 | DBW10A1-5X/100T6EG24N9DL1 |
| R900978199 | DBW10A1-5X/100U6EG24N9K4 |
| R901377475 | DBW10A1-5X/100X6EG24N9DL |
| R900731691 | DBW10A1-5X/100XYU6EG24N9K4 |
| R901008330 | DBW10A1-5X/200-6EG205N9K4 |
| R901007759 | DBW10A1-5X/200-6EG24N9DL |
| R900941174 | DBW10A1-5X/200-6EG24N9K4 |
| R901433229 | DBW10A1-5X/200T6EG24N9DL |
| R901303455 | DBW10A1-5X/200T6EG24N9DL1 |
| R901404275 | DBW10A1-5X/200U6EG24N9K4 |
| R901264954 | DBW10A1-5X/200X6EG24N9DL |
| R901365076 | DBW10A1-5X/200X6EG24N9DL1 |
| R901361035 | DBW10A1-5X/200XT6EG24N9DL |
| R901008331 | DBW10A1-5X/315-6EG205N9K4 |
| R900965477 | DBW10A1-5X/315-6EG24N9K4 |
| R901298187 | DBW10A1-5X/315-6EG24N9K4V |
| R901019708 | DBW10A1-5X/315U6EG24N9K4 |
| R901076401 | DBW10A1-5X/315Y6EG24N9K4 |
| R901088722 | DBW10A1-5X/350-6EG12N9DL |
| R900768859 | DBW10A1-5X/350-6EG24N9DL |
| R900770685 | DBW10A1-5X/350-6EG24N9K4 |
| R901158397 | DBW10A1-5X/350T6EG24N5DL |
| R901043175 | DBW10A1-5X/350T6EG24N9DL |
| R901078544 | DBW10A1-5X/350T6EG24N9K4 |
| R901193597 | DBW10A1-5X/350X6EG24N9DL |
| R901387218 | DBW10A1-5X/350XT6EG24N9DL |
| R900955032 | DBW10A1-5X/50-6EG24N9K4 |
| R900929314 | DBW10A2-5X/100-6EG110N9K4 |
| R900945646 | DBW10A2-5X/100-6EG220N9K4 |
| R901242846 | DBW10A2-5X/100-6EG24N9DL |
| R900948450 | DBW10A2-5X/100-6EG24N9K4 |
| R901206246 | DBW10A2-5X/100-6EG24N9K4D |
| R901424668 | DBW10A2-5X/100-6EG24N9K4E |
| R900904378 | DBW10A2-5X/100-6EG24N9Z45 |
| R900952229 | DBW10A2-5X/100U6EG24N9K4 |
| R900967954 | DBW10A2-5X/100X6EG24N9K4 |
| R901426243 | DBW10A2-5X/100XY6EG24N9K4 |
| R900775853 | DBW10A2-5X/100Y6EG125N9K4 |
| R900778745 | DBW10A2-5X/100Y6EG24N9K4 |
| R901426059 | DBW10A2-5X/100Y6EG96N9K4 |
| R900714015 | DBW10A2-5X/100YU6EG24N9K4 |
| R900958232 | DBW10A2-5X/130Y6EG24N9K4B |
| R901396525 | DBW10A2-5X/180-6EG24N9K4E |
| R900978916 | DBW10A2-5X/200-6EG110N9K4 |
| R901029881 | DBW10A2-5X/200-6EG125N9K4 |
| R900950328 | DBW10A2-5X/200-6EG12N9K4 |
| R900702778 | DBW10A2-5X/200-6EG180K4 |
| R900700175 | DBW10A2-5X/200-6EG205K4 |
| R900931016 | DBW10A2-5X/200-6EG220N9K4 |
| R900926324 | DBW10A2-5X/200-6EG220N9K4V |
| R900916693 | DBW10A2-5X/200-6EG220N9Z4V |
| R901009350 | DBW10A2-5X/200-6EG220NK4V |
| R901328006 | DBW10A2-5X/200-6EG24K4 |
| R900969386 | DBW10A2-5X/200-6EG24N9DL |
| R900777622 | DBW10A2-5X/200-6EG24N9DL1 |
| R900926249 | DBW10A2-5X/200-6EG24N9K4 |
| R901119214 | DBW10A2-5X/200-6EG24N9K4/12 |
| R900934197 | DBW10A2-5X/200-6EG24N9K4V |
| R900955622 | DBW10A2-5X/200-6EG24NK4 |
| R900928777 | DBW10A2-5X/200-6EG96N9K4 |
| R901075701 | DBW10A2-5X/200U6EG24N9K4 |
| R901020229 | DBW10A2-5X/200U6EG48N9K4 |
| R900971455 | DBW10A2-5X/200X6EG24N9K4 |
| R900971685 | DBW10A2-5X/200X6EG24NK4 |
| R900941213 | DBW10A2-5X/200XY6EG24N9K4 |
| R900909516 | DBW10A2-5X/200Y6EG24N9K4 |
| R901120385 | DBW10A2-5X/200YU6EG24N9K4 |
| R900958231 | DBW10A2-5X/225Y6EG24N9K4B |
| R901434312 | DBW10A2-5X/315-6EG110N5K4 |
| R901119692 | DBW10A2-5X/315-6EG110N9K4 |
| R900956565 | DBW10A2-5X/315-6EG205N9K4 |
| R901208559 | DBW10A2-5X/315-6EG205N9K4V |
| R900764780 | DBW10A2-5X/315-6EG24N4K4 |
| R901097718 | DBW10A2-5X/315-6EG24N5K4 |
| R900926054 | DBW10A2-5X/315-6EG24N9K4 |
| R978015777 | DBW10A2-5X/315-6EG24N9K4/12 |
| R900958973 | DBW10A2-5X/315-6EG24N9K4V |
| R900552823 | DBW10A2-5X/315-6EG24NZ5L |
| R901021569 | DBW10A2-5X/315-6EG48N9K4 |
| R900934198 | DBW10A2-5X/315-6EG96N9K4 |
| R900608725 | DBW10A2-5X/315-6EG96N9K4V |
| R987012953 | DBW10A2-5X/315U-6EG24N9K4 |
| R900924760 | DBW10A2-5X/315U6EG110N9K4 |
| R900741804 | DBW10A2-5X/315U6EG24N9K4 |
| R900781325 | DBW10A2-5X/315U6EG24NK4 |
| R900726914 | DBW10A2-5X/315X6EG24N9K4 |
| R901348221 | DBW10A2-5X/315XU6EG24N9K4 |
| R900964379 | DBW10A2-5X/315XY6EG24N9K4 |
| R900920436 | DBW10A2-5X/315Y6EG24N9K4 |
| R900956639 | DBW10A2-5X/315Y6EG24N9K4V |
| R901451904 | DBW10A2-5X/320-6EG24N9K4VE |
| R901090077 | DBW10A2-5X/350-6EG24N9DL |
| R900764323 | DBW10A2-5X/350-6EG24N9DL1 |
| R900974700 | DBW10A2-5X/350-6EG24N9K4 |
| R900928837 | DBW10A2-5X/350-6EG24N9K4=LB |
| R901376640 | DBW10A2-5X/350-6EG24N9K4D |
| R900919859 | DBW10A2-5X/350-6EG24N9K4V |
| R900930684 | DBW10A2-5X/350-6EG24NK4 |
| R900617478 | DBW10A2-5X/350-6EG96N9K4V |
| R901270317 | DBW10A2-5X/350T6EG24N9K4 |
| R900969013 | DBW10A2-5X/350Y6EG24N9DL |
| R901311636 | DBW10A2-5X/350Y6EG24N9K4 |
| R900579736 | DBW10A2-5X/350Y6EG24N9Z4 |
| R901074115 | DBW10A2-5X/50-6EG220N9K4 |
| R900731666 | DBW10A2-5X/50-6EG24N9K4 |
| R901017441 | DBW10A3-5X/100-6EG24N9K4 |
| R901095290 | DBW10A3-5X/100X6EG24N9K4 |
| R900930083 | DBW10A3-5X/200-6EG24N9K4 |
| R901307272 | DBW10A3-5X/200T6EG24N9DL1 |
| R900721639 | DBW10A3-5X/315-6EG24K4 |
| R900915418 | DBW10A3-5X/315-6EG24N9K4 |
| R900909738 | DBW10A3-5X/315-6EG24N9Z4 |
| R900975904 | DBW10A3-5X/315XU6EG24N9K4 |
| R900942035 | DBW10A3-5X/315XY6EG24N9K4 |
| R901292795 | DBW10A3-5X/350-6EG24N9K4 |
| R900947662 | DBW10A3-5X/350-6EG24N9K4V |
| R900245951 | DBW10A3-5X/50-6EG24N9K4 |
| R900739262 | DBW10A3-5X/50Y6EG24N9K4 |
| R901121442 | DBW10A5-5X/160Y6EG24N9K4 |
| R900948529 | DBW10A7-5X/200-6EG24N9K4 |
| R900949033 | DBW10A7-5X/315-6EG24N9K4 |
| R900730625 | DBW10A7-5X/315U6EG24N9K4 |
| R900906344 | DBW10AG1-5X/350-6EG24N9Z4 |
| R901275165 | DBW10AG2-5X/100-6EG24N9K4 |
| R901429156 | DBW10AG2-5X/140-6EG24N9K4E |
| R901266095 | DBW10AG2-5X/140Y6EG24N9K4E |
| R900730822 | DBW10AG2-5X/160-6EG24N9K4B |
| R901479380 | DBW10AG2-5X/160-6EG24N9K4E |
| R900745256 | DBW10AG2-5X/180-6EG24N9K4B |
| R901384121 | DBW10AG2-5X/180-6EG24N9K4E |
| R901182476 | DBW10AG2-5X/200-6EG110N9K4 |
| R900909169 | DBW10AG2-5X/200-6EG24N9DL |
| R900929092 | DBW10AG2-5X/200-6EG24N9K4 |
| R901384138 | DBW10AG2-5X/200-6EG24N9K4D |
| R901089220 | DBW10AG2-5X/200-6EG24N9K4V |
| R900943213 | DBW10AG2-5X/200-6EG48N9K4 |
| R901267098 | DBW10AG2-5X/200Y6EG24N9K4D |
| R901292497 | DBW10AG2-5X/200Y6EG24N9K4E |
| R900954830 | DBW10AG2-5X/315-6EG24K4 |
| R900910866 | DBW10AG2-5X/315-6EG24N9DL |
| R900964472 | DBW10AG2-5X/315-6EG24N9K4 |
| R901092374 | DBW10AG2-5X/315U6EG24N9K4 |
| R901024353 | DBW10AG2-5X/315X6EG24N9K4 |
| R901368116 | DBW10AG2-5X/50-6EG110N9K4 |
| R900929527 | DBW10AG2-5X/50-6EG24N9K4 |
| R900742232 | DBW10AG3-5X/200-6EG24N9K4 |
| R901026685 | DBW10AG3-5X/200Y6EG24N9K4 |
| R901214258 | DBW10AG3-5X/315-6EG125N5K4 |
| R900952751 | DBW10AG3-5X/315-6EG48N5K4 |
| R901054226 | DBW10AG3-5X/50-6EG24N9K4 |
| R901000239 | DBW10AG7-5X/350-6EG24N9K4 |
| R978005601 | DBW10A1-5X/200Y6EG24N9K4/12 |
| R978916021 | DBW10A1-5X/315-6EG24N9DA/12 |
| R978913054 | DBW10A2-5X/100-6EG24N9K4/12 |
| R978023552 | DBW10A2-5X/200-6EG125N9K4/12 |
| R978912159 | DBW10A2-5X/200-6EG24N9K4/12 |
| R978914754 | DBW10A2-5X/200-6EG96N9K4/12 |
| R978916694 | DBW10A2-5X/315-6EG24NK4/12 |
| R978003647 | DBW10A2-5X/315-6EG96N9K4V/12 |
| R978913258 | DBW10A2-5X/350X6EG24N9K4/12 |
| R900947292 | DBW10AG2-5X/350-6EG24N9K4 |
| R978915538 | DBW10AG7-5X/315-6EG12N9K4/12 |
