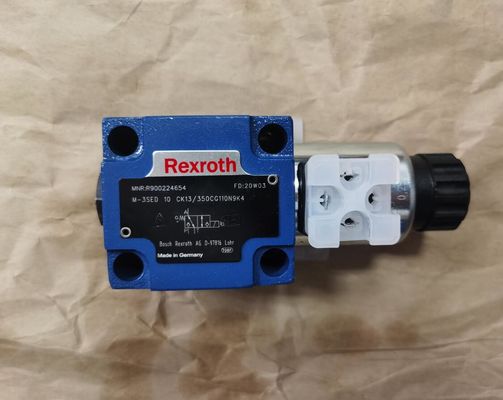

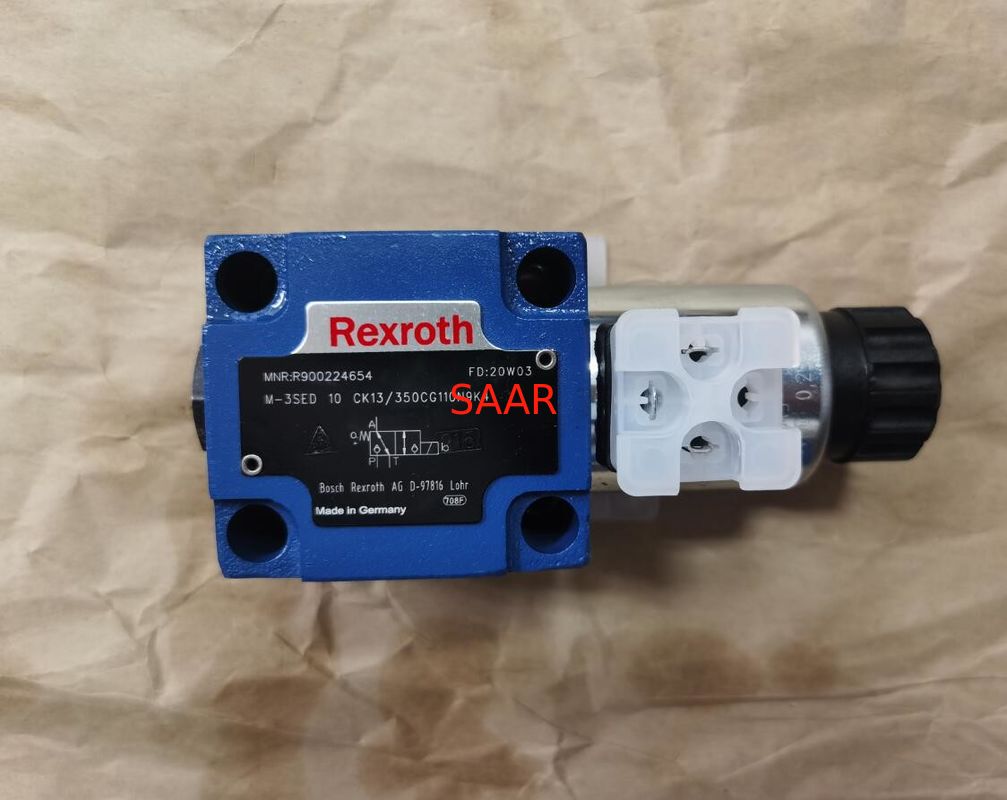

렉스로스 R900224654 M-3SED10CK13/350CG110N9K4 M-3SED10CK1X/350CG110N9K4 시리즈 지향성인 씨트 밸브

Rexroth M-3SED10 Series Directional Seat Valve

• Size 10
• Component series 1X
• Maximum operating pressure 350 bar
• Maximum flow 40 l/min

Features

• Direct operated directional seat valve with solenoid actuation
• Subplates (separate order)
• Blocked connection is leak-tight
• Reliable switching when under pressure over longer periods of standstill
• Wet-pin DC solenoids with detachable coil (AC voltage possible by means of a rectifier)
• Solenoid coil is rotatable by 90°
• The coil can be changed without having to open the pressure-tight chamber
• Electrical connection as individual connection
• With concealed manual override, optional
• Inductive position switch and proximity sensors (contactless)

Type code

01	Mineral oil				M
02	3 main ports				3
	4 main ports				4
03	Seat valve				SED
04	Size 10				10
05	Main ports		3	4
	Symbols		●	–	UK
			●	–	CK
			–	●	D
			–	●	Y
	● = available
06	Component series 10 ... 19 (10 ... 19: unchanged installation and connection dimensions)				1X
07	Operating pressure up to 350 bar				350 bar
08	Solenoid, wet (wet-pin), with detachable coil				C
09	Direct voltage 24 V				G24
	Nominal voltage 96 V at DC solenoid with operation with AC voltage mains (AC voltage mains 110 V - 50/60 Hz with an admissible voltage tolerance of +/- 10 %)				G96
	Nominal voltage 110 V at DC solenoid with operation with AC voltage mains (AC voltage mains 110 V/120 V – 50/60 Hz with an admissible voltage tolerance of +/-10 %)				G110
	Nominal voltage 205 V at DC solenoid with operation with AC voltage mains (AC voltage mains 230 V - 50/60 Hz with an admissible voltage tolerance of +/-10 %)				G205 1)
	Further ordering codes for other voltages are provided in the technical data
10	With concealed manual override				N9
	With manual override				no code
Electrical connection
11	Individual connection
	without mating connector, individual connection with connector according to DIN EN 175301-803				K42)
	With M12x1 plug-in connection, high-performance version 5-pole, integrated interference protection circuit, operating display with LED				K72L3)
Spool position monitoring
12	Without position switch				no code
	Monitored spool position "a"				QMAG24
	Monitored spool position "b"				QMBG24
13	Without check valve insert, without throttle insert				no code
	With check valve insert				P
	Throttle Ø 1.2 mm				B12
	Throttle Ø 1.5 mm				B15
	Throttle Ø 1.8 mm				B18
	Throttle Ø 2.0 mm				B20
	Throttle Ø 2.2 mm				B22
Seal material
14	NBR seals				no code
	FKM seals (other seals upon request)				V
	Observe compatibility of seals with hydraulic fluid used.
15	Further details in the plain text				*
