| RM 1902년, 쉬운 빌딩, 253-261 헤네시 길, 완차이, 홍콩 | jason@hydraulicpumpvalve.com |
 |
| 원래 장소: | 독일 |
| 브랜드 이름: | Rexroth |
| 모델 번호: | R902452431 AA10VSO71DRS/32R-VPB22U99-S2184 |
| 최소 주문 수량: | 1 |
|---|---|
| 포장 세부 사항: | 판지, 나무 상자 |
| 배달 시간: | 7-10days |
| 지불 조건: | 전신환, 웨스턴 유니온 |
| 공급 능력: | 7-10days에 있는 10PCS |
| 물자 아니.: | R902452431 | 아니 타자를 치십시오.: | AA10VSO71DRS/32R-VPB22U99-S2184 |
|---|---|---|---|
| 하이 라이트: | R902452431 Axial Piston Variable Pump,AA10VSO71DRS/32R-VPB22U99-S2184,Size 45 Axial Piston Variable Pump |
||

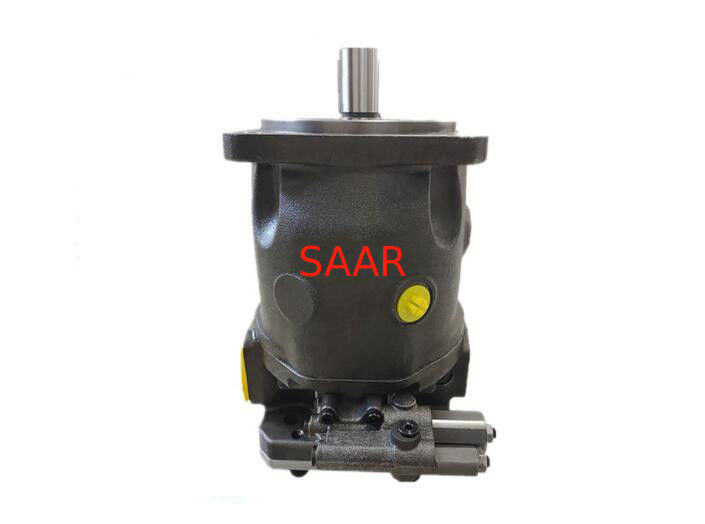

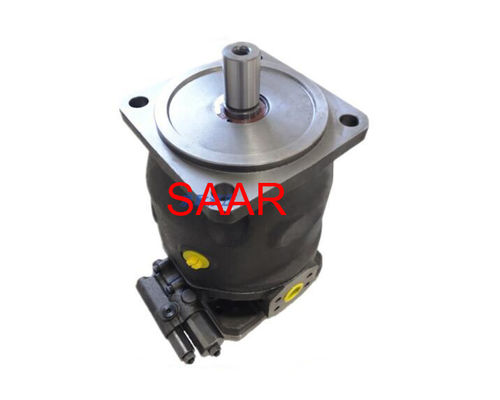

R902452431 AA10VSO71DRS/32R-VPB22U99-S2184 Rexroth 32R Series Axial Piston Variable Pump
SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.
Axial Piston Variable Pump A10VSO Series 32
Optimized medium pressure pump for high power machines
Size 45 … 180
Nominal pressure 280 bar
Maximum pressure 350 bar
Open circuit
Features
Through drive for mounting of further pumps up to same nominal size
Approved for high speeds
Increased functional reliability
Hydrostatically relieved swashplate bearing
Large variety of controls
Low operating noise
Swashplate design
| Size | 45 | 71 | 100 | 140 | 180 | |||
| Displacement geometric, per revolution |
Vg max | cm³ | 45 | 71 | 100 | 140 | 180 | |
| Nominal pressure | pnom | bar | 280 | 280 | 280 | 280 | 280 | |
| Maximum pressure | pmax | bar | 350 | 350 | 350 | 350 | 350 | |
| Maximum speed | at Vg max | nnom | rpm | 1800 | 1800 | 1800 | 1800 | 1800 |
| Flow | at Vg max and nnom | qV nom | l/min | 81 | 128 | 180 | 252 | 324 |
| at Vg max and n = 1500 rpm | qV 1500 | l/min | 67.5 | 106.7 | 150 | 210 | 270 | |
| Power | at qV nom and pnom | P | kW | 38 | 59.7 | 84 | 118 | 151 |
| at qV 1500 and pnom | P 1500 | kW | 67.5 | 106.7 | 150 | 210 | 270 | |
| Torque | at Vg max and pnom | M | Nm | 200 | 317 | 446 | 624 | 802 |
| Weight (approx.) | m | kg | 30 | 47 | 69 | 73 | 78 | |
Axial Piston Variable Pump A10VSO Series 32 Model List:
| R902469085 | A10VSO100LA7S/32R-VSB22U99 |
| R902469087 | A10VSO140LA6S/32R-VSB22U99 |
| R902452707 | A10VSO45DFR1/32R-VPB12N00-S2655 |
| R902530923 | A10VSO45DRF/32R-VPB22U00E |
| R902494250 | A10VSO45DRG/32R-VPB22U99 |
| R902519912 | A10VSO45DRG/32R-VSB22U00E |
| R902513630 | A10VSO45DRS/32R-VSB32U00E |
| R902456829 | A10VSO71DR/32R-VPB12N00 |
| R902448636 | A10VSO71DR/32R-VPB22U99 |
| R902448638 | A10VSO71DR/32R-VPB32U99 |
| R902449985 | A10VSO71DR/32R-VSB12N00 |
| R902469696 | A10VSO71DR/32R-VSB12N00-SO108 |
| R902517131 | A10VSO71DR/32R-VSB22U00S |
| R902478094 | A10VSO71DR/32R-VSB22U04 |
| R902452790 | A10VSO71DR/32R-VSB22U99-S2174 |
| R902463368 | A10VSO71DRF/32R-VPB32U99 |
| R902489530 | A10VSO71DRG/32R-VPB12N00 |
| R902557020 | A10VSO71DRG/32R-VPB12N00C |
| R902540469 | A10VSO71DRG/32R-VPB12N00-S1550 |
| R902465463 | A10VSO71DRG/32R-VPB22U99 |
| R902448221 | A10VSO71DRS/32R-VPB12N00 |
| R902448900 | A10VSO71DRS/32R-VPB12N00-S1439 |
| R902448899 | A10VSO71DRS/32R-VPB12N00-S1648 |
| R902452789 | A10VSO71DRS/32R-VPB22U99 |
| R902452029 | A10VSO71DRS/32R-VPB22U99-S1439 |
| R902452429 | A10VSO71DRS/32R-VPB22U99-S2183 |
| R902452431 | A10VSO71DRS/32R-VPB22U99-S2184 |
| R902537562 | A10VSO71DRS/32R-VPB32U00E-S2709 |
| R902448836 | A10VSO71DRS/32R-VPB32U99-S2026 |
| R902494805 | A10VSO71DRS/32R-VPB32U99-S2709 |
| R902448179 | A10VSO71DRS/32R-VPB32U99-SO52 |
| R902486410 | A10VSO71DRS/32R-VRB32U01-SO52 |
| R902486409 | A10VSO71DRS/32R-VRB32U68-SO52 |
| R902450319 | A10VSO71DRS/32R-VSB12N00-S1439 |
| R902510280 | A10VSO71DRS/32R-VSB22U00E-SO52 |
| R902501798 | A10VSO71DRS/32R-VSB22U99 |
| R902512433 | A10VSO71DRS/32R-VSB22UB3E-SO52 |
| R902551878 | A10VSO71LA6DG/32R-VSD72U00E |
| R902448742 | A10VSO71LA6D/32R-VPB32U99 |
| R902454852 | A10VSO71LA6DS/32R-VPB22U99 |
| R902454564 | A10VSO71LA6DS/32R-VPB32U99 |
| R902461698 | A10VSO71LA6DS/32R-VSB22U99 |
| R902463155 | A10VSO71LA7S/32R-VPB22U99 |
| R902463294 | A10VSO71LA7S/32R-VPB32U99 |
| R902436234 | A10VSO100DFR1/32R-VPB12N00 |
| R902449982 | A10VSO100DR/32R-VPB12N00 |
| R902444079 | A10VSO100DR/32R-VPB12N00-SO13 |
| R902469690 | A10VSO100DR/32R-VPB32L60 |
| R902460598 | A10VSO100DR/32R-VPB32U99 |
| R902490862 | A10VSO100DR/32R-VSB12N00 |
| R902448357 | A10VSO100DRG/32R-VPB12N00 |
| R902496845 | A10VSO100DRG/32R-VPB22U00E |
| R902455406 | A10VSO100DRG/32R-VSD32U07-S2879 |
| R902451585 | A10VSO100DRG/32R-VSB32U99 |
| R902460602 | A10VSO100DRS/32R-VPB12N00 |
| R902436353 | A10VSO100DRS/32R-VPB12N00-S1439 |
| R902436863 | A10VSO100DRS/32R-VPB12N00-SO32 |
| R902531610 | A10VSO100DRS/32R-VPB22U00E-SO32 |
| R902452557 | A10VSO100DRS/32R-VPB22U99-S1439 |
| R902450320 | A10VSO100DRS/32R-VPB22UB8-S1439 |
| R902450323 | A10VSO100DRS/32R-VPB22UB9-S1439 |
| R902445577 | A10VSO100DRS/32R-VPB32U99-S1440 |
| R902445605 | A10VSO100DRS/32R-VPB32U99-S2001 |
| R902450324 | A10VSO100DRS/32R-VSB12N00-S1439 |
| R902452634 | A10VSO100DRS/32R-VSB22UB8-S1439 |
| R902451171 | A10VSO100DRS/32R-VSB22UB9-S1439 |
| R902454561 | A10VSO100DRS/32R-VPB22U99 |
| R902543383 | A10VSO100DRS/32R-VPB32U00E-S2709 |
| R902454560 | A10VSO100DRS/32R-VPB32U99 |
| R902477585 | A10VSO100DRS/32R-VSB32U99 |
| R902455762 | A10VSO100LA6D/32R-VPB32U99 |
| R902454864 | A10VSO100LA6DS/32R-VPB22U99 |
| R902454866 | A10VSO100LA6DS/32R-VPB32U99 |
| R902492533 | A10VSO100LA7D/32R-VSB32C10 |
| R902468514 | A10VSO100LA7DS/32R-VPB22U99 |
| R902548587 | A10VSO100LA7DS/32R-VSB32U00E |
| R902488378 | A10VSO140DG/32R-VSB22U68 |
| R902488534 | A10VSO140DR/32R-CPB32U99-SO275 |
| R902464808 | A10VSO140DR/32R-VKD72U99 |
| R902449984 | A10VSO140DR/32R-VPB12N00 |
| R902460597 | A10VSO140DR/32R-VPB32U99 |
| R902489334 | A10VSO140DR/32R-VPB32UB7 |
| R902497964 | A10VSO140DR/32R-VPB32UB7E-S3973 |
| R902485747 | A10VSO140DR/32R-VSB12N00 |
| R902531574 | A10VSO140DR/32R-VSB12N00-SO108 |
| R902497965 | A10VSO140DR/32R-VSB32U00E-S3973 |
| R902489335 | A10VSO140DR/32R-VSB32U99 |
| R902494857 | A10VSO140DR1/32R-CPB32U99Z-S1804 |
| R902463369 | A10VSO140DRF/32R-VPB32U99 |
| R902486850 | A10VSO140DRF/32R-VPB32U99-S1550 |
| R902462477 | A10VSO140DRG/32R-VPB12N00 |
| R902449671 | A10VSO140DRG/32R-VPB22U99-SO488 |
| R902449250 | A10VSO140DRG/32R-VPB32U99-SO488 |
| R902455405 | A10VSO140DRG/32R-VSD32U07-S2100 |
| R902445697 | A10VSO140DRG/32R-VSD32U68-S2100 |
| R902513544 | A10VSO140DRG/32R-VSD72U00E |
| R902448219 | A10VSO140DRS/32R-VPB12N00 |
| R902448360 | A10VSO140DRS/32R-VPB22U68 |
| R902465472 | A10VSO140DRS/32R-VPB22U99 |
| R902496218 | A10VSO140DRS/32R-VPB22UB3E |
| R902450364 | A10VSO140DRS/32R-VPB22UB8 |
| R902450356 | A10VSO140DRS/32R-VPB22UB9 |
| R902448363 | A10VSO140DRS/32R-VPB32U68 |
| R902446190 | A10VSO140DRS/32R-VPB32U99 |
| R902450880 | A10VSO140DRS/32R-VPB32U99-S2117 |
| R902450706 | A10VSO140DRS/32R-VSB12N00 |
| R902477257 | A10VSO140DRS/32R-VSB22U68 |
| R902450853 | A10VSO140DRS/32R-VSB22U99 |
| R902450808 | A10VSO140DRS/32R-VSB22UB7 |
| R902452628 | A10VSO140DRS/32R-VSB22UB8 |
| R902452631 | A10VSO140DRS/32R-VSB22UB9 |
| R902450852 | A10VSO140DRS/32R-VSB32U99 |
| R902514124 | A10VSO140DRS/32R-VSD72U00E |
| R902482706 | A10VSO140LA6D/32R-VPB22U68 |
| R902449059 | A10VSO140DRS/32R-VPB22U99 |
| R902530948 | A10VSO180DR/32R-VPB22U00E |
| R902557409 | A10VSO180DR/32R-VSB12N00E |
| R902534337 | A10VSO180DRF/32R-VSD72U00E |
| R902516851 | A10VSO180DRF/32R-VPB22U00E |
| R902497939 | A10VSO180DRG/32R-VKD72U00EE |
| R902492780 | A10VSO180DRG/32R-VPB22H00 |
| R902540895 | A10VSO180DRG/32R-VPB22U00E |
| R902486825 | A10VSO180DRG/32R-VPB22U99 |
| R902540343 | A10VSO180DRS/32R-VPB32U00E |
| R902547457 | A10VSO180LA7DS/32R-VPB22U00E |
| R902545827 | A10VSO180LA7DS/32R-VSB32U00E |
| R902544613 | A10VSO180LA7DS/32R-VSB32U00E |
| R902497334 | A10VSO180LA7DS/32R-VSB32U00E |
| R902546015 | A10VSO180LA8DS/32R-VSB32U00E |
| R902516161 | A10VSO180LA8DS/32R-VSB32U00E |
| R987124868 | A10VSO100DRS/32R-VPB32U99 |
| R902436233 | ALA10VSO100DFR1/32R-VPB12N00 |
| R902436233 | ALA10VSO100DFR1/32R-VPB12N00 |
| R902533294 | ALA10VSO100DR/32R-VPB12N00 |
| R902533294 | ALA10VSO100DR/32R-VPB12N00 |
| R902486086 | ALA10VSO140DR/32R-VPB12N00 |
| R902486086 | ALA10VSO140DR/32R-VPB12N00 |
