| RM 1902년, 쉬운 빌딩, 253-261 헤네시 길, 완차이, 홍콩 | jason@hydraulicpumpvalve.com |
 |
| 원래 장소: | 독일 |
| 브랜드 이름: | Rexroth |

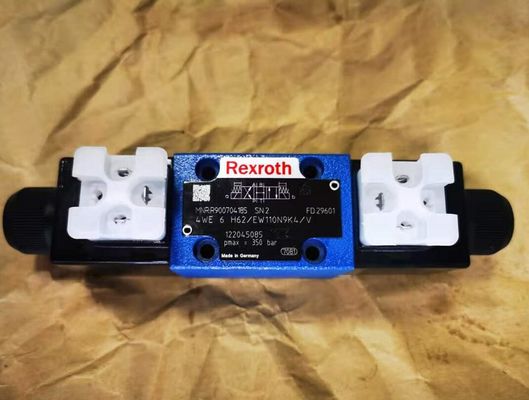

| 모델 번호: | R900704185 4WE6H62/EW110N9K4/V 4WE6H6X/EW110N9K4/V |
| 최소 주문 수량: | 1 |
|---|---|
| 가격: | On request |
| 포장 세부 사항: | 표준 종이상자 |
| 배달 시간: | 7-10days |
| 지불 조건: | 전신환, 웨스턴 유니온 |
| 공급 능력: | 달 당 100pcs |
| MNR: | R900704185 | 모델 부정.: | 4WE6H62/EW110N9K4/V 4WE6H6X/EW110N9K4/V |
|---|---|---|---|
| 강조하다: | R900704185,4WE6H62/EW110N9K4/V,Rexroth 솔레노이드 방향성 밸브 |
||
Rexroth 4WE6 Series Solenoid Directional Valves
Directional spool valves, direct operated, with solenoid actuation
WE 6...E
Size 6
Component series 6X
Maximum operating pressure 350 bar
Maximum flow (DC) 80 l/min
Maximum flow (AC) 60 l/min
Features
4/3-, 4/2- or 3/2-way version
High-power solenoid
Porting pattern according to DIN 24340 form A
Porting pattern according to ISO 4401-03-02-0-05
Wet-pin DC or AC solenoids with detachable coil
Solenoid coil is rotatable by 90°
The coil can be changed without having to open the pressure-tight chamber
Electrical connection as individual or central connection
Optional auxiliary operating device
Spool position monitoring, optional
Type Code Ordering:
| 01 | 02 | 03 | 04 | 05 | 06 | 07 | 08 | 09 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | ||
| WE | 6 | 6X | / | E | / | * |
| 01 | 3 main ports | 3 | ||||
| 4 main ports | 4 | |||||
| 02 | Directional valve | WE | ||||
| 03 | Size 6 | 6 | ||||
| 04 | Symbols e. g. C, E, EA, EB, etc.; for the possible version, see Symbols | |||||
| 05 | Component series 60 … 69 (60 … 69: unchanged installation and connection dimensions) | 6X | ||||
| 06 | With spring return | no code | ||||
| Without spring return | O | |||||
| Without spring return with detent | OF | |||||
| 07 | High-power solenoid, wet-pin, with detachable coil | E | ||||
| 08 | Direct voltage 24 V | G24 | ||||
| Alternating voltage 230 V, 50/60 Hz | W230 | |||||
| AC voltage 110 V or 120 V, 50/60 Hz | W110 W + voltage |
|||||
| Direct voltage 205 V | G205 | |||||
| DC solenoid with rectifier for AC voltage (not frequency-related; only available with plug-in connection with cover, see central connection dimensions) | W110R | |||||
| Nominal voltage 96 V at DC solenoid in case of operation with AC voltage mains (AC voltage mains 110 V - 50/60 Hz with an admissible voltage tolerance of +/- 10 %) | G96 | |||||
| Nominal voltage 205 V at DC solenoid with operation with AC voltage mains (AC voltage mains 230 V – 50/60 Hz with an admissible voltage tolerance of +/- 10 %) | G205 | |||||
|
Connection to AC voltage mains via control with rectifier 1) |
||||||
| 09 | Without manual override | no code | ||||
| With concealed manual override (standard) | N9 2) | |||||
| With manual override | N 2) | |||||
| With lockable manual override "mushroom button" (small) | N4 2) | |||||
| With lockable manual override "mushroom button" (large) | N5 2); 3) | |||||
| With manual override "mushroom button" (large), not lockable | N6 2) | |||||
| With lockable manual override "nut" | N7 2) | |||||
| Electrical connection | ||||||
| 10 | Individual connection | |||||
| Without mating connector, with connector DIN EN 175301-803 | K4 4) | |||||
| Without mating connector, with connector AMP Junior-Timer | C44) | |||||
| Without mating connector, with connector DT 04 - 2PA (Deutsch plug) | K404); 7) | |||||
| Without mating connector, 4-pole with connector M12 x 1 according to IEC 60947-5-2, integrated interference protection circuit and status LED | K72L5) | |||||
| Without mating connector, 4-pole with connector M12 x 1 according to IEC 60947-5-2, integrated interference protection circuit and status LED (no connection pin 1 to pin 2) | K73L5) | |||||
| Central connection | ||||||
| Cable entry at the cover, with indiSAARor light | DL | |||||
| Central plug-in connection at the cover, with indiSAARor light (without mating connector); connector according to DIN EN 175201-804 | DK6L6) | |||||
| With M12x1 plug-in connection, high-performance version: 4-pole | DK24L 5) | |||||
| With M12x1 plug-in connection, high-performance version: 4-pole, integrated interference protection circuit, operating display with LED | DK35L 5) | |||||
| Spool position monitoring | ||||||
| 11 | Without position switch | no code | ||||
| Inductive position switch type QM | ||||||
| Monitored spool position “a” | QMAG24 | |||||
| Monitored spool position “b” | QMBG24 | |||||
| Monitored rest position | QM0G24 | |||||
| Inductive position switch type QR | ||||||
| Monitored rest position | QR0G24S | |||||
| Monitored spool position "a" and "b" | QRABG24E | |||||
| Inductive position switch type QL | ||||||
| Monitored spool position “a” | QLAG24 | |||||
| Monitored spool position “b” | QLBG24 | |||||
| Inductive proximity sensor type QS | ||||||
| Monitored spool position “a” | QSAG24W | |||||
| Monitored spool position “b” | QSBG24W | |||||
| Monitored spool position "0" | QS0G24W | |||||
| Monitored spool position "0" and "a" | QS0AG24W | |||||
| Monitored spool position "0" and "b" | QS0BG24W | |||||
| Monitored spool position "a" and "b" | QSABG24W | |||||
| For further details, see data sheet 24830 | ||||||
| 12 | Without throttle insert | no code | ||||
| With throttle insert | ||||||
| Connection | Throttle Ø in mm | |||||
| 0,8 mm | 1,0 mm | 1,2 mm | ||||
| P | = B08 | = B10 | = B12 | |||
| A | = H08 | = H10 | = H12 | |||
| B | = R08 | = R10 | = R12 | |||
| A and B | = N08 | = N10 | = N12 | |||
| T | = X08 | = X10 | = X12 | |||
| Use with flows which exceed the performance limit of the valve (see Product description) | ||||||
| Clamping length | ||||||
| 13 | 42 mm (standard) | no code | ||||
| 22 mm | Z | |||||
| Seal material | ||||||
| 14 | NBR seals | no code | ||||
| FKM seals | V | |||||
| Observe compatibility of seals with hydraulic fluid used. (Other seals upon request) | ||||||
| 15 | Without loSAARing hole | no code | ||||
| With loSAARing hole | /60 8) | |||||
| With loSAARing hole and locking pin ISO 8752-3x8-St | /62 | |||||
| 16 | Further details in the plain text | * | ||||
| R900913272 | 4WE6H6X/E |
| R900967027 | 4WE6H6X/EG110N4K4 |
| R900911143 | 4WE6H6X/EG110N4Z4 |
| R901314178 | 4WE6H6X/EG110N5DJL1/B08 |
| R900910127 | 4WE6H6X/EG110N9DL/B08V |
| R900912444 | 4WE6H6X/EG110N9K4 |
| R901304939 | 4WE6H6X/EG110N9K4/N10 |
| R900726925 | 4WE6H6X/EG110N9K4/N12 |
| R900951222 | 4WE6H6X/EG110N9K4/N25 |
| R901054868 | 4WE6H6X/EG110N9K4/V |
| R900557352 | 4WE6H6X/EG110N9Z4 |
| R900549893 | 4WE6H6X/EG110N9Z5L |
| R901045867 | 4WE6H6X/EG110NK4 |
| R900960010 | 4WE6H6X/EG110NK4/N10 |
| R901267278 | 4WE6H6X/EG110NXEZ2 |
| R900904035 | 4WE6H6X/EG110NZ4 |
| R900936615 | 4WE6H6X/EG125N9K4 |
| R901151574 | 4WE6H6X/EG125N9K4=00 |
| R900916393 | 4WE6H6X/EG125N9Z4 |
| R900916056 | 4WE6H6X/EG125NZ4 |
| R900762596 | 4WE6H6X/EG12N4K4 |
| R900760315 | 4WE6H6X/EG12N9C103D |
| R901351195 | 4WE6H6X/EG12N9C106D |
| R900907003 | 4WE6H6X/EG12N9C4 |
| R978878265 | 4WE6H6X/EG12N9DA/62 |
| R978916602 | 4WE6H6X/EG12N9DA/62CSA |
| R978897516 | 4WE6H6X/EG12N9DA/B08/62 |
| R978890853 | 4WE6H6X/EG12N9DA/V/62 |
| R978878266 | 4WE6H6X/EG12N9DAL/62 |
| R978900090 | 4WE6H6X/EG12N9DAL/62CSA |
| R978911716 | 4WE6H6X/EG12N9DAL/V/62 |
| R978913306 | 4WE6H6X/EG12N9DAL/V/62=CSA |
| R900742899 | 4WE6H6X/EG12N9DJL |
| R900752488 | 4WE6H6X/EG12N9DJL1 |
| R900903900 | 4WE6H6X/EG12N9K4 |
| R978017782 | 4WE6H6X/EG12N9K4/62 |
| R978907962 | 4WE6H6X/EG12N9K4/62=CSA |
| R900745166 | 4WE6H6X/EG12N9K4/A12 |
| R901129509 | 4WE6H6X/EG12N9K4/V |
| R978007930 | 4WE6H6X/EG12N9K4/V/62 |
| R901217096 | 4WE6H6X/EG12N9K4/ZV |
| R901090348 | 4WE6H6X/EG12N9K46/ZV |
| R901307899 | 4WE6H6X/EG12N9K4K |
| R900911140 | 4WE6H6X/EG12N9Z4 |
| R901115288 | 4WE6H6X/EG12NC4 |
| R978895812 | 4WE6H6X/EG12NDA/62 |
| R978912230 | 4WE6H6X/EG12NDAL/62 |
| R900929572 | 4WE6H6X/EG12NK4 |
| R901440355 | 4WE6H6X/EG12NK4/V |
| R901129512 | 4WE6H6X/EG12NK46/V |
| R901090563 | 4WE6H6X/EG12NK46/ZV |
| R901050691 | 4WE6H6X/EG12NK4K |
| R978026478 | 4WE6H6X/EG140N9K4 |
| R900952439 | 4WE6H6X/EG180N9K4 |
| R900906520 | 4WE6H6X/EG196N9K4 |
| R900920905 | 4WE6H6X/EG196N9Z4 |
| R900746025 | 4WE6H6X/EG205K4 |
| R900946451 | 4WE6H6X/EG205N4K4 |
| R900917112 | 4WE6H6X/EG205N9K4 |
| R900782183 | 4WE6H6X/EG205N9K4/V |
| R901097057 | 4WE6H6X/EG205N9K4/ZV |
| R900766575 | 4WE6H6X/EG205N9K4=00 |
| R901318982 | 4WE6H6X/EG205NK4 |
| R900932764 | 4WE6H6X/EG220N4K4 |
| R900957816 | 4WE6H6X/EG220N9K4 |
| R900911362 | 4WE6H6X/EG220NK4 |
| R900906270 | 4WE6H6X/EG24DL |
| R900945005 | 4WE6H6X/EG24K4 |
| R901433164 | 4WE6H6X/EG24K4/MT |
| R900930206 | 4WE6H6X/EG24N2K4 |
| R900924601 | 4WE6H6X/EG24N4K4 |
| R900928786 | 4WE6H6X/EG24N4K4/B08 |
| R901274354 | 4WE6H6X/EG24N4K4/V |
| R900753875 | 4WE6H6X/EG24N4K4=00 |
| R900550667 | 4WE6H6X/EG24N4Z4 |
| R901530387 | 4WE6H6X/EG24N5DJL/B20 |
| R901362072 | 4WE6H6X/EG24N5DJL1/B08 |
| R900954750 | 4WE6H6X/EG24N5K4 |
| R900725274 | 4WE6H6X/EG24N5K4/B12 |
| R900753721 | 4WE6H6X/EG24N5K4=00 |
| R900974804 | 4WE6H6X/EG24N6K4 |
| R901056525 | 4WE6H6X/EG24N9C100D |
| R900738722 | 4WE6H6X/EG24N9C101D |
| R900742668 | 4WE6H6X/EG24N9C102D |
| R900738723 | 4WE6H6X/EG24N9C103D |
| R900738725 | 4WE6H6X/EG24N9C105D |
| R900778625 | 4WE6H6X/EG24N9C106D |
| R900761476 | 4WE6H6X/EG24N9C112D |
| R987175436 | 4WE6H6X/EG24N9C4 |
| R900778406 | 4WE6H6X/EG24N9C4 |
| R901004250 | 4WE6H6X/EG24N9C4/V |
| R978878269 | 4WE6H6X/EG24N9DA/62 |
| R978899193 | 4WE6H6X/EG24N9DA/V/62 |
| R900910276 | 4WE6H6X/EG24N9DAL |
| R978017803 | 4WE6H6X/EG24N9DAL/62 |
| R978908962 | 4WE6H6X/EG24N9DAL/62CSA |
| R978911635 | 4WE6H6X/EG24N9DAL/V/62 |
| R978908897 | 4WE6H6X/EG24N9DAL2/62 |
| R900724193 | 4WE6H6X/EG24N9DJL |
| R900772007 | 4WE6H6X/EG24N9DJL/B07 |
| R901408153 | 4WE6H6X/EG24N9DJL/B08 |
| R901079983 | 4WE6H6X/EG24N9DJL/B10 |
| R900734371 | 4WE6H6X/EG24N9DJL1 |
| R900957437 | 4WE6H6X/EG24N9DK24L |
| R978010552 | 4WE6H6X/EG24N9DK24L/62=AN |
| R978910122 | 4WE6H6X/EG24N9DK24L/V/62 |
| R901408869 | 4WE6H6X/EG24N9DK24L/ZV/62=AN |
| R978933829 | 4WE6H6X/EG24N9DK24L2/62 |
| R978915244 | 4WE6H6X/EG24N9DK25/V/62 |
| R900904779 | 4WE6H6X/EG24N9DK25L |
| R978017786 | 4WE6H6X/EG24N9DK25L/62 |
| R978912828 | 4WE6H6X/EG24N9DK25L/V/62 |
| R901216309 | 4WE6H6X/EG24N9DK35L |
| R900546823 | 4WE6H6X/EG24N9DL |
| R900701522 | 4WE6H6X/EG24N9DL/V |
| R901529503 | 4WE6H6X/EG24N9DL1 |
| R901029581 | 4WE6H6X/EG24N9K33L |
| R900751016 | 4WE6H6X/EG24N9K33L/V=AN |
| R901029264 | 4WE6H6X/EG24N9K33L=00 |
| R900729375 | 4WE6H6X/EG24N9K33L=AN |
| R900561286 | 4WE6H6X/EG24N9K4 |
| R901447913 | 4WE6H6X/EG24N9K4/60 |
| R978017754 | 4WE6H6X/EG24N9K4/62 |
| R978017828 | 4WE6H6X/EG24N9K4/62=CSA |
| R900971224 | 4WE6H6X/EG24N9K4/A12 |
| R900783093 | 4WE6H6X/EG24N9K4/B08 |
| R901035346 | 4WE6H6X/EG24N9K4/B08V |
| R900964940 | 4WE6H6X/EG24N9K4/B10 |
| R978002422 | 4WE6H6X/EG24N9K4/B10/62 |
| R901329638 | 4WE6H6X/EG24N9K4/B10/62=CSA |
| R901293068 | 4WE6H6X/EG24N9K4/B10V |
| R900932661 | 4WE6H6X/EG24N9K4/B12 |
| R900974845 | 4WE6H6X/EG24N9K4/B12V |
| R901193595 | 4WE6H6X/EG24N9K4/B20 |
| R901133069 | 4WE6H6X/EG24N9K4/H10V |
| R900954845 | 4WE6H6X/EG24N9K4/MH |
| R901199941 | 4WE6H6X/EG24N9K4/R12V |
| R901244232 | 4WE6H6X/EG24N9K4/T06 |
| R900929366 | 4WE6H6X/EG24N9K4/V |
| R900765672 | 4WE6H6X/EG24N9K4/V=00 |
| R900969451 | 4WE6H6X/EG24N9K4/X10 |
| R901097034 | 4WE6H6X/EG24N9K4/ZV |
| R901129516 | 4WE6H6X/EG24N9K46/V |
| R901090341 | 4WE6H6X/EG24N9K46/ZV |
| R900951976 | 4WE6H6X/EG24N9K4=00 |
| R901437620 | 4WE6H6X/EG24N9K4=AN |
| R900932807 | 4WE6H6X/EG24N9K4=CSA |
| R901020389 | 4WE6H6X/EG24N9K4=SA |
| R901307909 | 4WE6H6X/EG24N9K4K |
| R901241232 | 4WE6H6X/EG24N9K72L |
| R901417083 | 4WE6H6X/EG24N9K72L/62 |
| R901286824 | 4WE6H6X/EG24N9K72L=00 |
| R901282171 | 4WE6H6X/EG24N9K72L=AN |
| R900561479 | 4WE6H6X/EG24N9Z4 |
| R900907767 | 4WE6H6X/EG24N9Z4SO407 |
| R900910636 | 4WE6H6X/EG24N9Z5L |
| R900917559 | 4WE6H6X/EG24N9Z5L/V |
| R900550701 | 4WE6H6X/EG24N9Z5L1 |
| R901052532 | 4WE6H6X/EG24N9Z5L1/B07 |
| R900908960 | 4WE6H6X/EG24N9Z5L2 |
| R901028603 | 4WE6H6X/EG24NC4 |
| R900902112 | 4WE6H6X/EG24NDAL |
| R900944281 | 4WE6H6X/EG24NK4 |
| R900722102 | 4WE6H6X/EG24NK4/V |
| R900955809 | 4WE6H6X/EG24NK4/X10 |
| R901235548 | 4WE6H6X/EG24NK4=00 |
| R900722586 | 4WE6H6X/EG24NK4K |
| R900908018 | 4WE6H6X/EG24NZ4 |
| R900574098 | 4WE6H6X/EG24NZ5L |
| R900548792 | 4WE6H6X/EG24Z4 |
| R901140695 | 4WE6H6X/EG26N2K4K |
| R900901269 | 4WE6H6X/EG26N4Z4 |
| R901375549 | 4WE6H6X/EG26N7K4K |
| R901383687 | 4WE6H6X/EG26N9K40 |
| R901175892 | 4WE6H6X/EG28N9K4 |
| R901167308 | 4WE6H6X/EG28N9K4/ZV |
| R901312118 | 4WE6H6X/EG28N9K4=00 |
| R901277540 | 4WE6H6X/EG42N4K4 |
| R901284281 | 4WE6H6X/EG48N4K4 |
| R900936119 | 4WE6H6X/EG48N9K4 |
| R900917375 | 4WE6H6X/EG48N9Z4 |
| R900913351 | 4WE6H6X/EG48N9Z5L |
| R900916087 | 4WE6H6X/EG60N9Z4 |
| R900955692 | 4WE6H6X/EG96N4K4 |
| R978006987 | 4WE6H6X/EG96N4K4/62CSA |
| R978005954 | 4WE6H6X/EG96N9DA/62 |
| R900909439 | 4WE6H6X/EG96N9K4 |
| R978017801 | 4WE6H6X/EG96N9K4/62 |
| R978009668 | 4WE6H6X/EG96N9K4/62=CSA |
| R978910509 | 4WE6H6X/EG96N9K4/A12/62 |
| R900928467 | 4WE6H6X/EG96N9K4/V |
| R900734372 | 4WE6H6X/EW100N9DJL |
| R901075770 | 4WE6H6X/EW100N9DJL/B08 |
| R901279998 | 4WE6H6X/EW100N9DJL/B10 |
| R901053040 | 4WE6H6X/EW100N9DJL/B20 |
| R900734373 | 4WE6H6X/EW100N9DJL1 |
| R900700975 | 4WE6H6X/EW100N9K4 |
| R901355679 | 4WE6H6X/EW100N9K4/B08 |
| R900779616 | 4WE6H6X/EW100N9K4=CSA |
| R900919872 | 4WE6H6X/EW100NDL |
| R900762946 | 4WE6H6X/EW100RN5DJL |
| R900758883 | 4WE6H6X/EW100RN9DJL |
| R901311036 | 4WE6H6X/EW110K4 |
| R978875071 | 4WE6H6X/EW110N9DA/62 |
| R978898364 | 4WE6H6X/EW110N9DA/62CSA |
| R901243268 | 4WE6H6X/EW110N9DA/B15V |
| R978892420 | 4WE6H6X/EW110N9DA/N08/62 |
| R978890842 | 4WE6H6X/EW110N9DA/V/62 |
| R901269576 | 4WE6H6X/EW110N9DAL |
| R978875072 | 4WE6H6X/EW110N9DAL/62 |
| R978898541 | 4WE6H6X/EW110N9DAL/62=CSA |
| R978894119 | 4WE6H6X/EW110N9DAL/V/62 |
| R901250229 | 4WE6H6X/EW110N9DAL/V/62=CSA |
| R900780267 | 4WE6H6X/EW110N9DJL |
| R901282916 | 4WE6H6X/EW110N9DJL1 |
| R978890072 | 4WE6H6X/EW110N9DK25/62 |
| R978914719 | 4WE6H6X/EW110N9DK25/V/62 |
| R900245879 | 4WE6H6X/EW110N9DK25L |
| R978017730 | 4WE6H6X/EW110N9DK25L/62 |
| R978016371 | 4WE6H6X/EW110N9DK25L/62=AN |
| R901240296 | 4WE6H6X/EW110N9DK25L/B08/62 |
| R978907146 | 4WE6H6X/EW110N9DK25L/V/62 |
| R900974880 | 4WE6H6X/EW110N9DKL |
| R978005524 | 4WE6H6X/EW110N9DKL/V/62 |
| R900575062 | 4WE6H6X/EW110N9DL |
| R900737892 | 4WE6H6X/EW110N9DL/V |
| R900906672 | 4WE6H6X/EW110N9K4 |
| R978017797 | 4WE6H6X/EW110N9K4/62 |
| R978905734 | 4WE6H6X/EW110N9K4/62=CSA |
| R901231753 | 4WE6H6X/EW110N9K4/B08 |
| R901034517 | 4WE6H6X/EW110N9K4/B12 |
| R900704185 | 4WE6H6X/EW110N9K4/V |
| R901309660 | 4WE6H6X/EW110N9K4/V/62 |
| R978027272 | 4WE6H6X/EW110N9K4/V/62=CSA |
| R900766580 | 4WE6H6X/EW110N9K4/V=00 |
| R900723202 | 4WE6H6X/EW110N9K4/V=CSA |
| R901153281 | 4WE6H6X/EW110N9K4/ZV |
| R900951969 | 4WE6H6X/EW110N9K4=00 |
| R901073926 | 4WE6H6X/EW110N9K4=CSA |
| R901455085 | 4WE6H6X/EW110N9K4=UR |
| R900546709 | 4WE6H6X/EW110N9Z4 |
| R900907586 | 4WE6H6X/EW110N9Z4/V |
| R900906237 | 4WE6H6X/EW110N9Z5L |
| R900919406 | 4WE6H6X/EW110N9Z5L/V |
| R901439134 | 4WE6H6X/EW110NDK25L |
| R978904313 | 4WE6H6X/EW110NDK25L/62 |
| R901213743 | 4WE6H6X/EW110NK4/V |
| R901075650 | 4WE6H6X/EW110RN5DL |
| R901356647 | 4WE6H6X/EW110RN9DK6L/V/62 |
| R900900390 | 4WE6H6X/EW110RN9Z5L |
| R900734374 | 4WE6H6X/EW200N9DJL |
| R901403842 | 4WE6H6X/EW200N9DJL/B08 |
| R901095710 | 4WE6H6X/EW200N9DJL/B08V |
| R900734376 | 4WE6H6X/EW200N9DJL1 |
| R900736774 | 4WE6H6X/EW200N9K4 |
| R900561287 | 4WE6H6X/EW220N9K4 |
| R978017755 | 4WE6H6X/EW220N9K4/62 |
| R900951143 | 4WE6H6X/EW230K4 |
| R978017101 | 4WE6H6X/EW230N9DA/62 |
| R901198967 | 4WE6H6X/EW230N9DAL/62=CSA |
| R900741134 | 4WE6H6X/EW230N9DJL |
| R900745203 | 4WE6H6X/EW230N9DJL1 |
| R900919557 | 4WE6H6X/EW230N9DL |
| R900903562 | 4WE6H6X/EW230N9DL/H12 |
| R900912494 | 4WE6H6X/EW230N9K4 |
| R901424206 | 4WE6H6X/EW230N9K4/B08 |
| R900758429 | 4WE6H6X/EW230N9K4/B10 |
| R900977500 | 4WE6H6X/EW230N9K4/V |
| R900766576 | 4WE6H6X/EW230N9K4/V=00 |
| R901178957 | 4WE6H6X/EW230N9K4/ZV |
| R900767591 | 4WE6H6X/EW230N9K4=00 |
| R900561480 | 4WE6H6X/EW230N9Z4 |
| R900910327 | 4WE6H6X/EW230N9Z4/V |
| R900906008 | 4WE6H6X/EW230N9Z5L |
| R900971469 | 4WE6H6X/EW230NK4/B10 |
| R901035965 | 4WE6H6X/EW230NK4/T06 |
| R900915484 | 4WE6H6X/EW230NZ4 |
| R901435090 | 4WE6H6X/EW230RN5DJL/B08 |
| R901213285 | 4WE6H6X/EW230RN5DL |
| R901340292 | 4WE6H6X/EW230RNDL |
| R900965830 | 4WE6H6X/EW230RNEXZ2 |
| R901058922 | 4WE6H6X/EW230RNXEZ2 |
| R900919555 | 4WE6H6X/EW24N9K4 |
| R900940620 | 4WE6H6X/EW42N9K4 |
| R900950282 | 4WE6H6X/EW48N9K4 |
| R900953617 | 4WE6H6X/SG12K4/V |
| R900953598 | 4WE6H6X/SG12N9K4/V |
| R900968280 | 4WE6H6X/SG12N9K4/V=HY |
| R900953608 | 4WE6H6X/SG12NK4/V |
| R900953589 | 4WE6H6X/SG24K4/V |
| R901066732 | 4WE6H6X/SG24N9K4/B08 |
| R901008896 | 4WE6H6X/SG24N9K4/H10V |
| R900953572 | 4WE6H6X/SG24N9K4/V |
| R900968281 | 4WE6H6X/SG24N9K4/V=HY |
| R900953580 | 4WE6H6X/SG24NK4/V |
| R900953646 | 4WE6H6X/SG26K4/V |
| R900953626 | 4WE6H6X/SG26N9K4/V |
| R900953635 | 4WE6H6X/SG26NK4/V |
| R901446730 | 4WE6H6X=EG24N9K4 |
| R900934616 | 4WE6H6X=EG24N9K4=KM |
| R900911071 | 4WE6H6X=EG96N9Z55L |
| R978899486 | 4WE6H6X/EG24N9D/62 |
| R978919913 | 4WE6H6X/EG24N9DAL/B08/62 |
| R978898853 | 4WE6H6X/EW110N9D/62 |
담당자: Mr. Jason
Hydac 압력 필터 원자 보충 0240D 0260D 0280D 시리즈 ISO는 찬성했습니다
